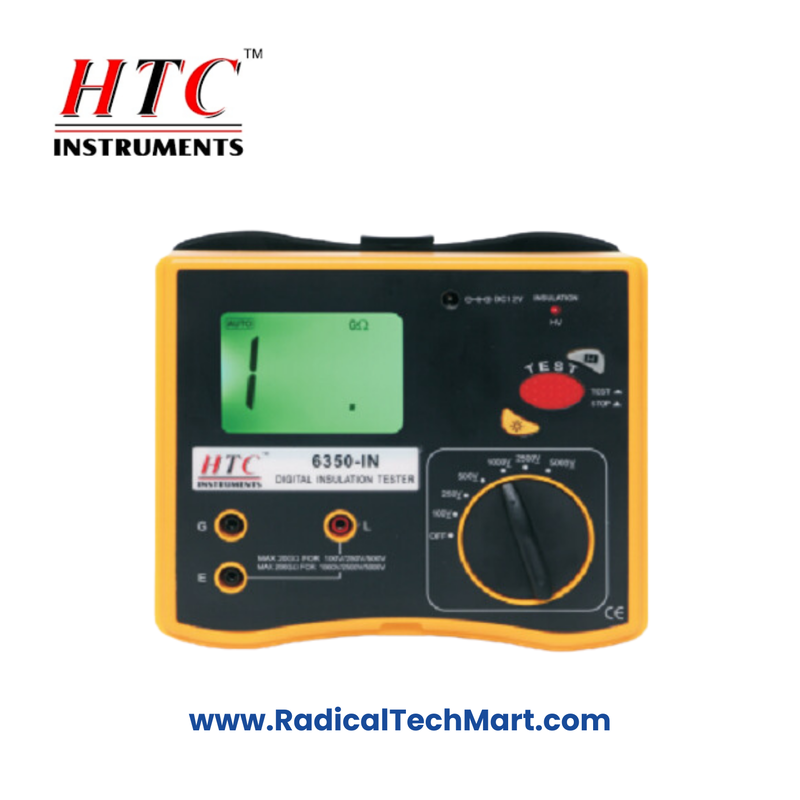

HTC Instruments Digital Insulation Tester 6350IN

Features:

• Display: 3.5 digit backlit display
• Count: 1999 count
• Data Hold: Allows the user to hold the measurement value on the display
• Test Range: 100V to 5000V, suitable for a wide range of insulation testing

Technical Specifications:

• Testing Voltage:
  • 100V, 250V, 500V, 1000V, 2500V, and 5000V options for flexible testing conditions
• Output Voltage: 90-110% of the test voltage for accurate and reliable readings
• Measurement Range:
  • 0.1 MΩ to 20 GΩ for 100V, 250V, and 500V test voltages
  • 0.1 MΩ to 200 GΩ for 1000V, 2500V, and 5000V test voltages
• Resolution: 0.01 MΩ for precise measurements
• Accuracy:
  • 0.1 MΩ to 200 MΩ: ±3% of reading + 5 digits
  • 200 MΩ to 10 GΩ: ±5% of reading + 10 digits
  • 10 GΩ to 200 GΩ: ±10% of reading + 5 digits

Power:

• Power Source: 8 AA 1.5V rechargeable batteries
